What performance parameters should you pay
attention to when selecting casters?
Casters have many performance parameters, which are also important indicators when selecting
casters. Let's take a look at them one by one.
1. Deformation resistance under heavy pressure
Under heavy load for a long time, the wheel landing position becomes larger and flattened, that is,
the test sample bears a certain static pressure load, and then the load is removed after the specified
compression time. The percentage of the height of the wheel after landing position change compared
with the original height.
2. Water absorption
Increase in the weight of the test sample. It is expressed as a percentage of the weight of the sample
after being tested by a specific procedure and the initial weight.
3. Operating temperature
Operating temperature range measured at rated load.
4. Adhesive force
The force required to peel the tire from the bonded wheel core at a speed of 6 inches per minute is
calculated in pounds divided by the linear width of the tire.
5. Tensile strength
The force required when the wheel breaks from the cross section. In pounds divided by the area of the
cross-section of the sample (square inches).
6. Hardness
It is used to measure the hardness of rubber and other tire and wheel core materials, expressed by
shore "a" or "d". Compressive strength the maximum compressive stress borne by the specimen
during the compression test, in megapascals.
7. Elongation
Under the action of tensile force, the ratio of the increase in the distance between markings to the
initial gauge distance when the sample is broken is expressed as a percentage.
8. Impact strength
The ability of materials to withstand the violent impact imposed by free falling heavy objects. It is
expressed in inches / pounds, feet / pounds or stamping work at test temperature.

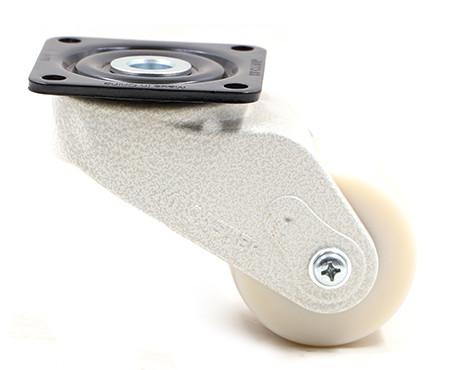

Universal Caster Wheels Parameter
| Wheel material | Nylon |
| Load Capacity | 600KG |
| Wheel Diameter | 72mm |
| Color | white |
| purpose | automation equipment |
| Tread Width | 31MM |
| Load Height | 103.5MM |
Universal Caster Wheels Describe
Universal Caster Wheels Size
Universal Caster Wheels Material
| | Name | Material | Treatment |
| 1 | Caster Seat | SPC | Blank/Powder Coated |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Cup | ALDC12 | Ni |
| 5 | Brake | S45C | Zn Galvanized |
| 6 | Pin | S10C | Zn Galvanized |
| 7 | Wheel | PA6 | Black |
Universal Caster Wheels Scope of application
Application.
aluminum frame, automation equipment, semiconductor/display manufacturing equipment,
conveyor belt, etc.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007. KTC is a modern
company specialzingin the production of multi function &high quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi District, Beijing. KTC
adopts international advanced production testing equipments, professional intelligent
production management system and professional design flow. Now the company produces
multi function & high quality production, such as KT CASTER and KT FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER, high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level adjusting FOOT
are widely used in the world's advanced automation equipment and semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC use the best processing
technology and equipment. And KTC continuously launches world top level of new products.
KTC's s also has set up a branch in Korea, so it is favored by theusers of various fields around
the world.
